Specification

Model: YL700

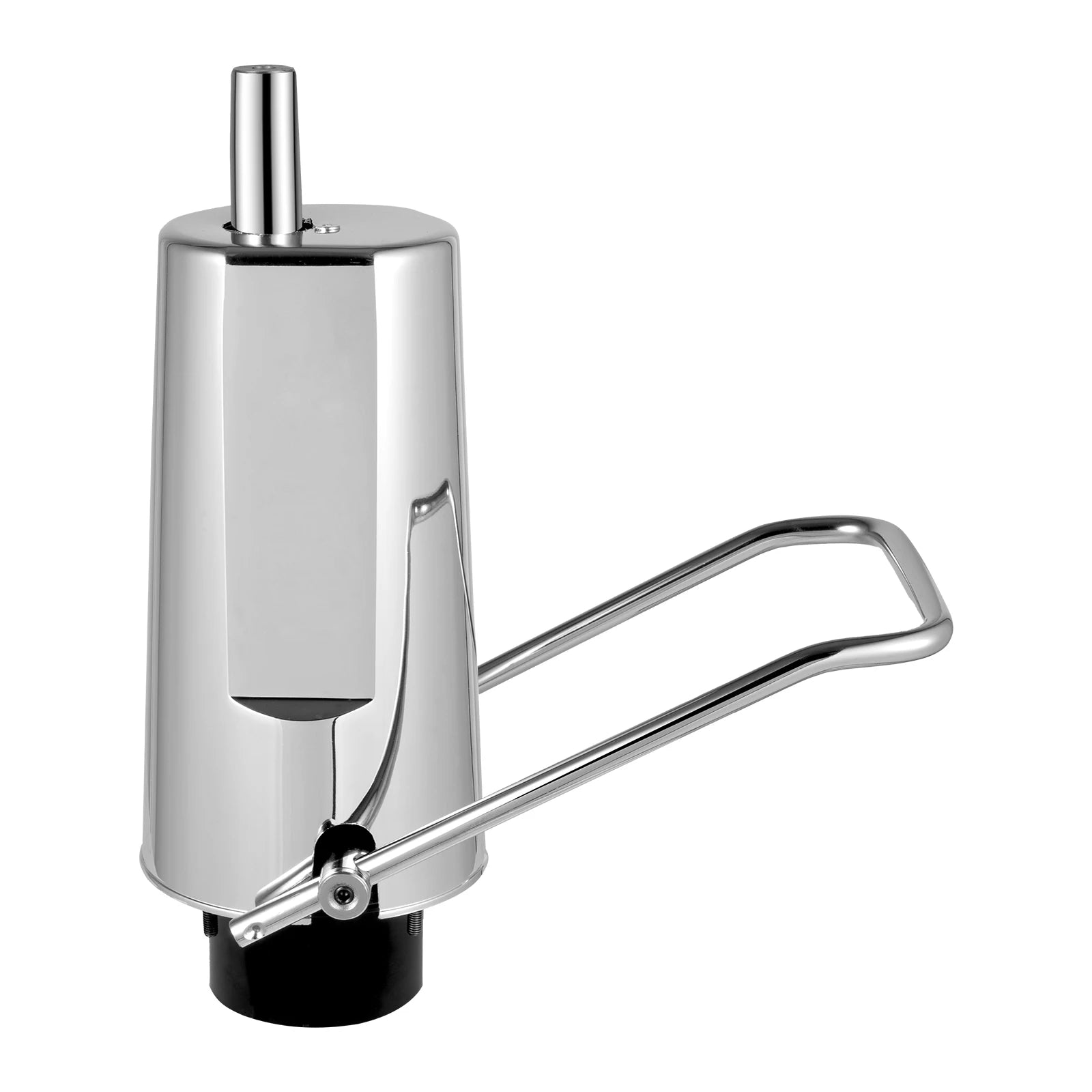

Name: Barber Chair Hydraulic Pump
Pump Body Material: Cast Iron
Pump Casing Material: Plastic
Surface Treatment: Painting
Color: Silver

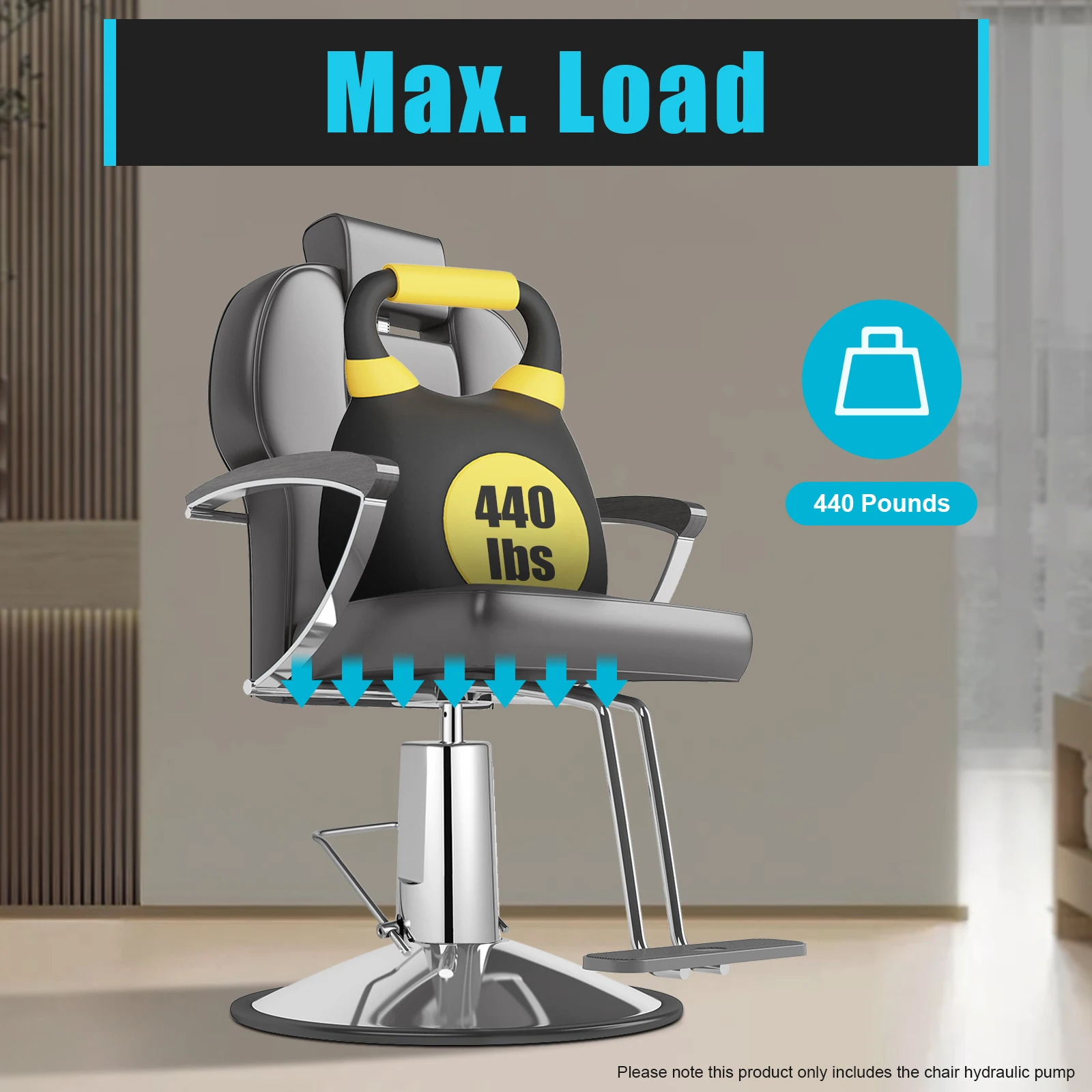

Weight Capacity: 200kg/440 pounds
Thread: M8
Height: 38cm/15.0in
Height After Stretching: 49cm/19.3in

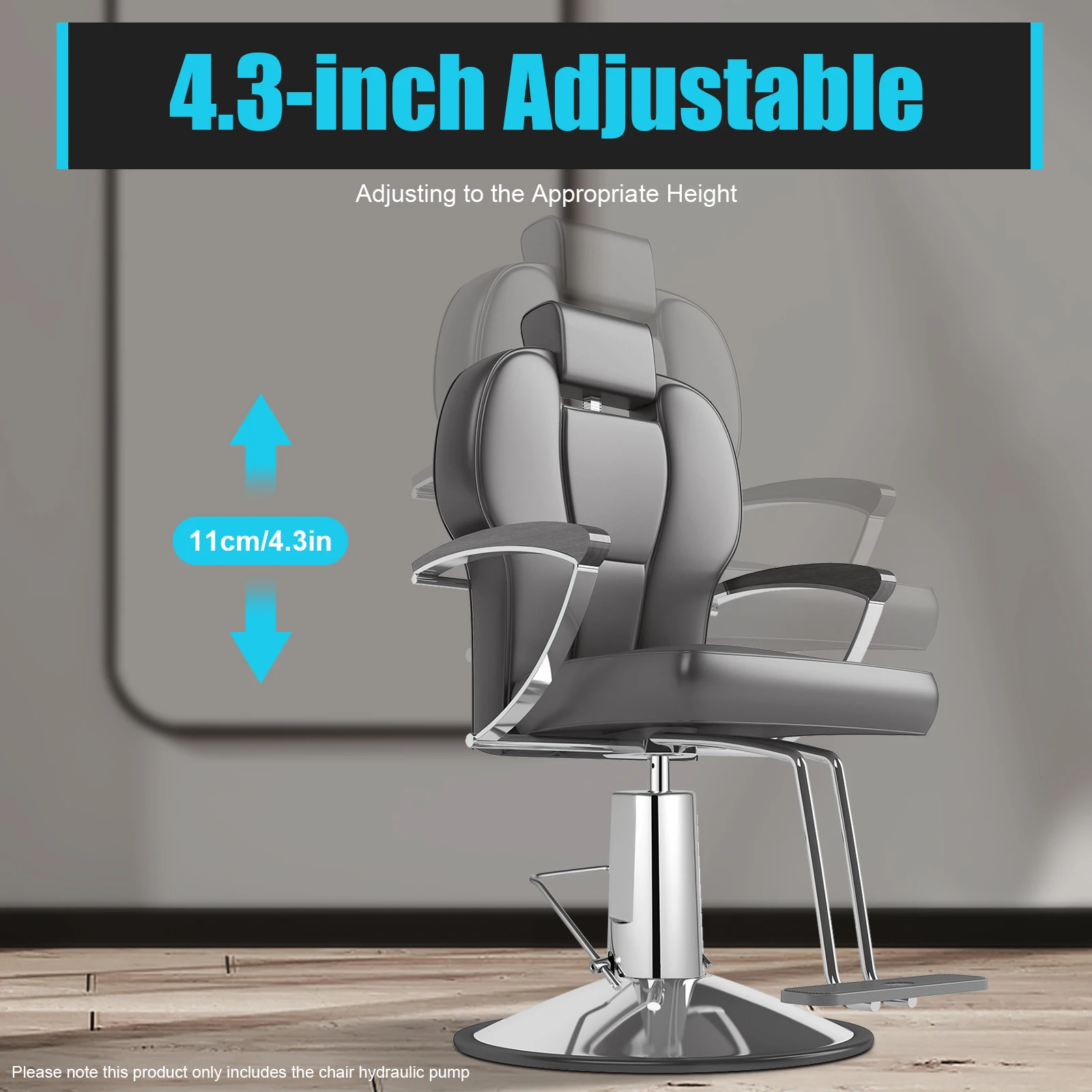

Adjustable Height: 11cm/4.3in
Connecting Shaft Diameter: 2.6cm/1.02in
Hole Distance Between the Pump and the Base: 11.5cm/ 4.53in

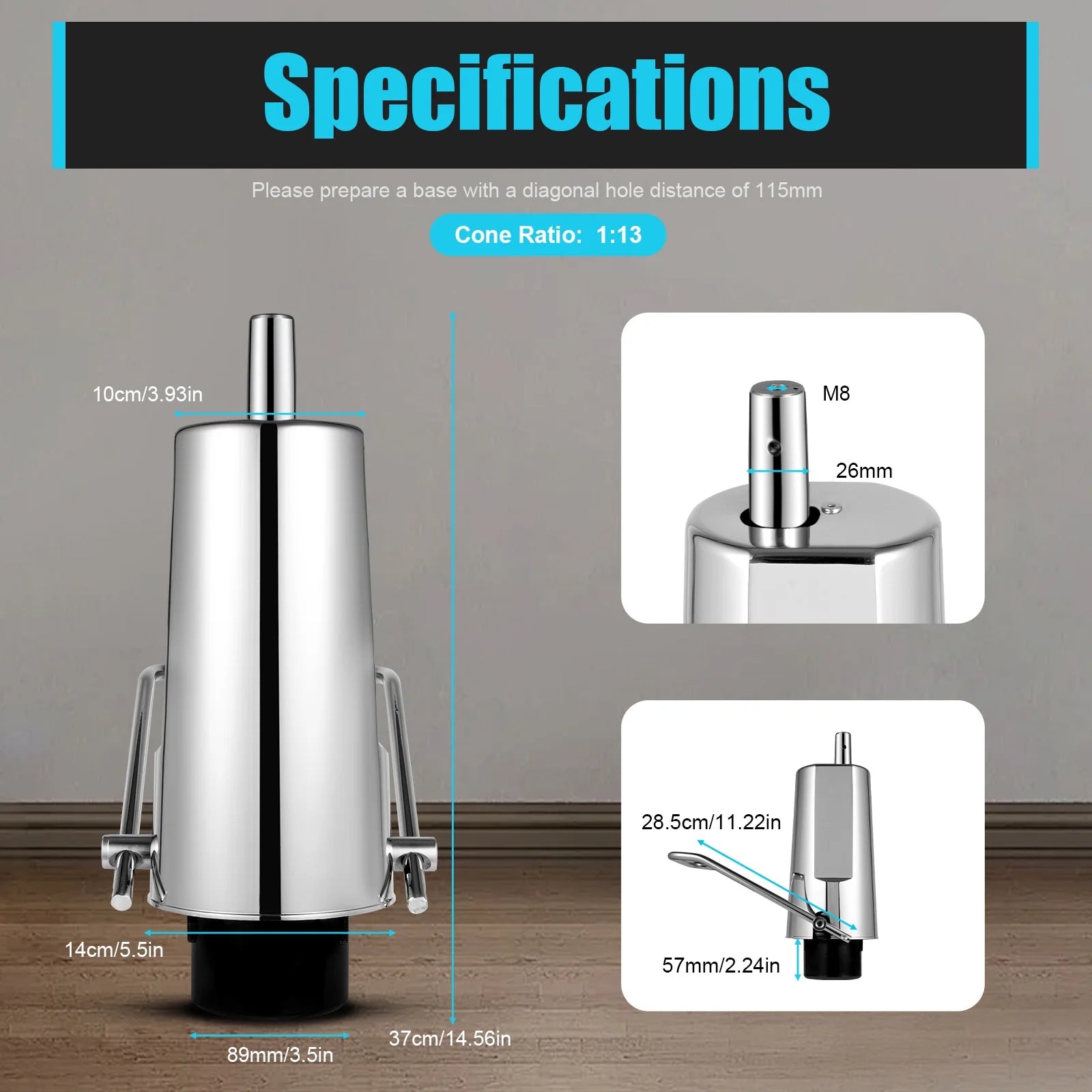

How to Confirm Whether It Matches Your Seat Needs to Pay attention to the Following Four Aspects.

1.Upper interface requirements: Top thread of spindle: m8.
2.Shaft Diameter: 26mm.
3.Cone Ratio of shaft: 1:13.
4.Requirements for base connection: 4 holes and the diagonal spacing of holes is 115mm. And please bring four M6 nuts.

Application

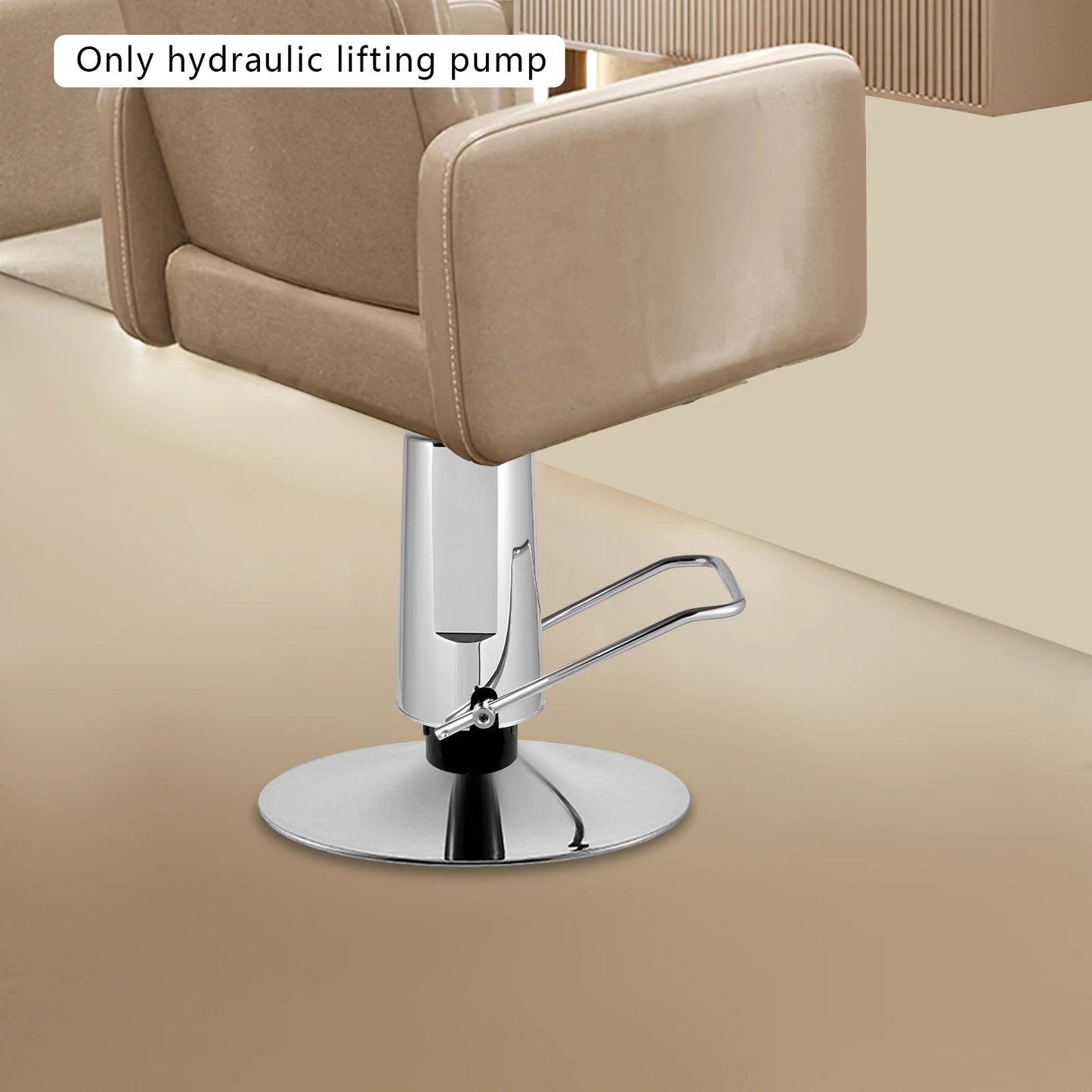

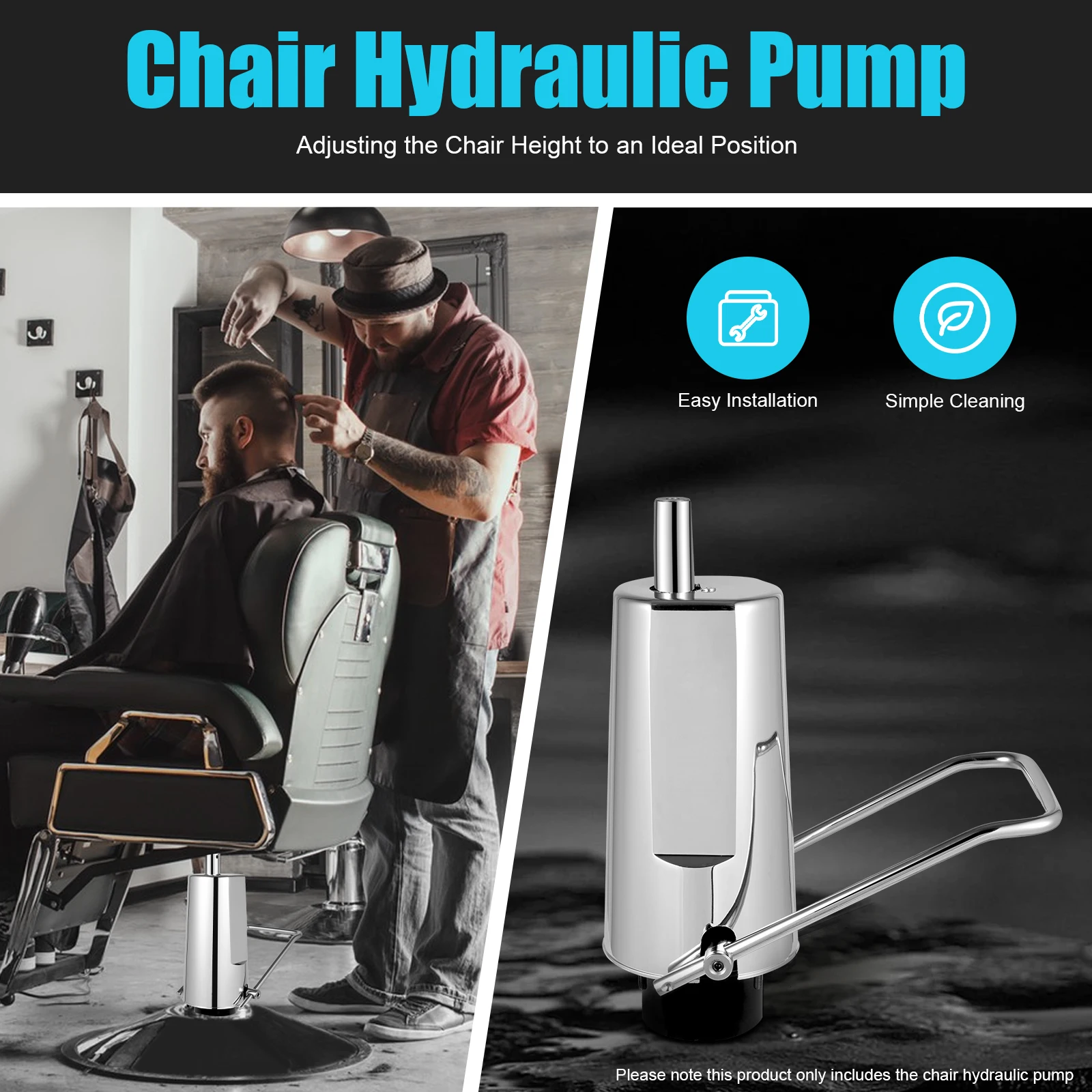

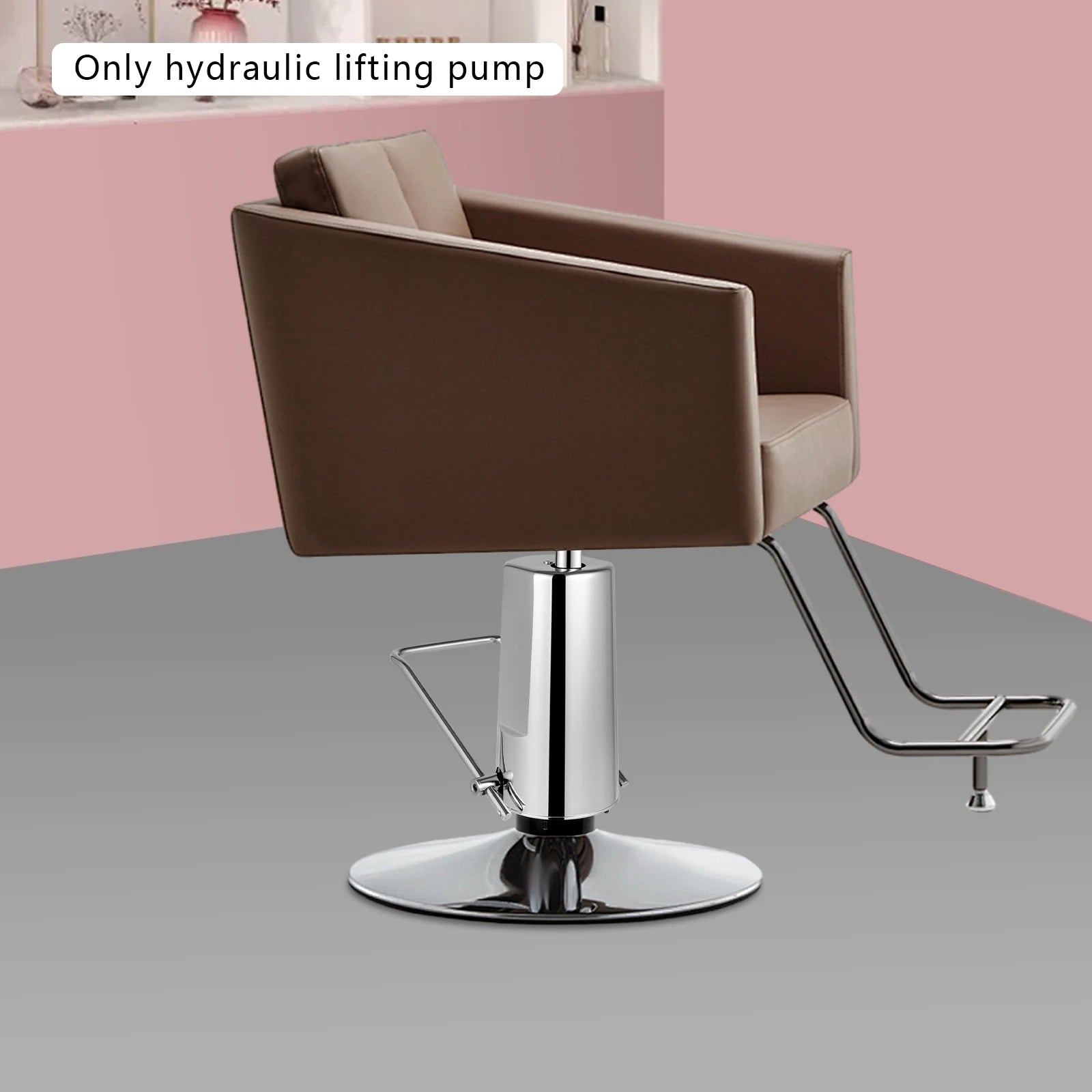

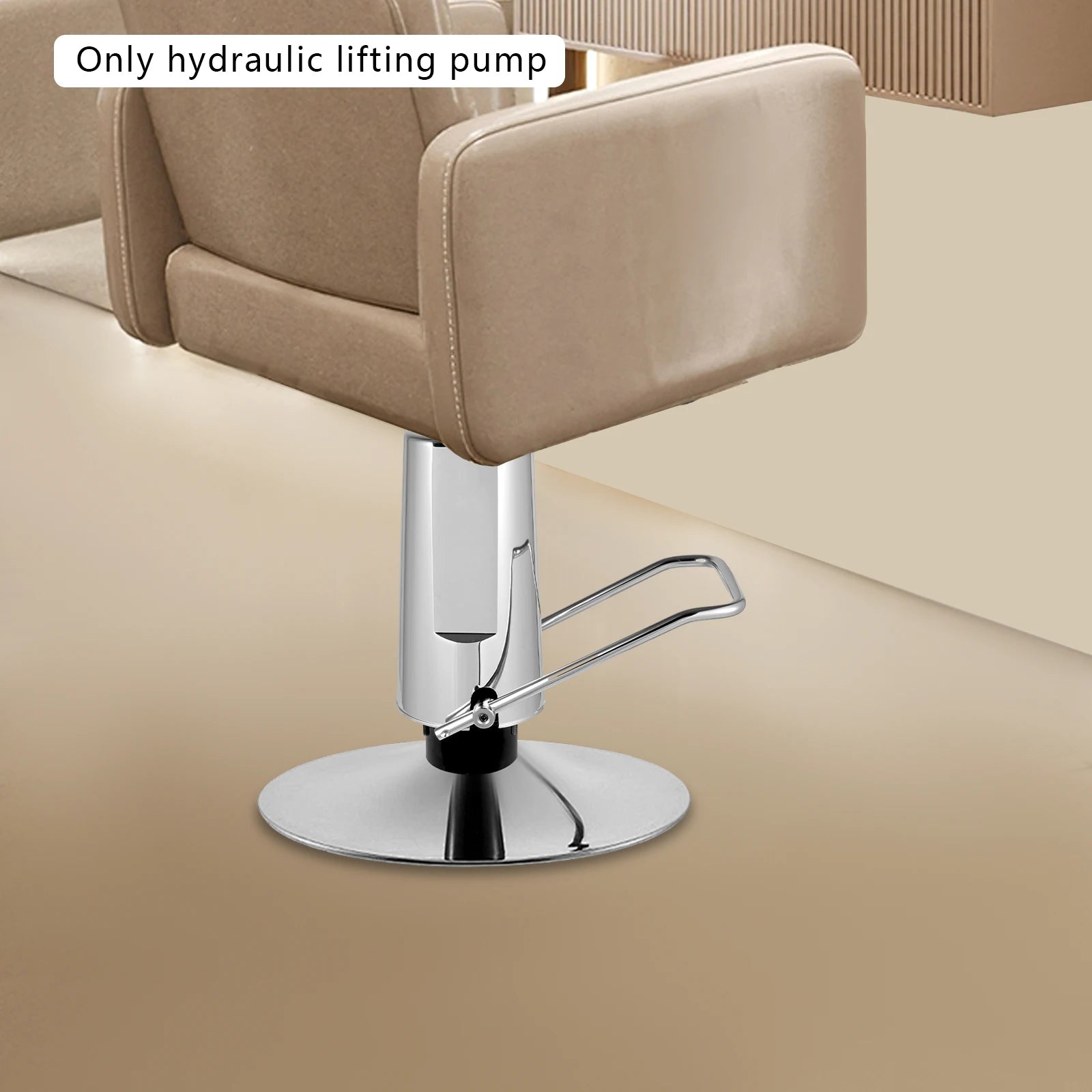

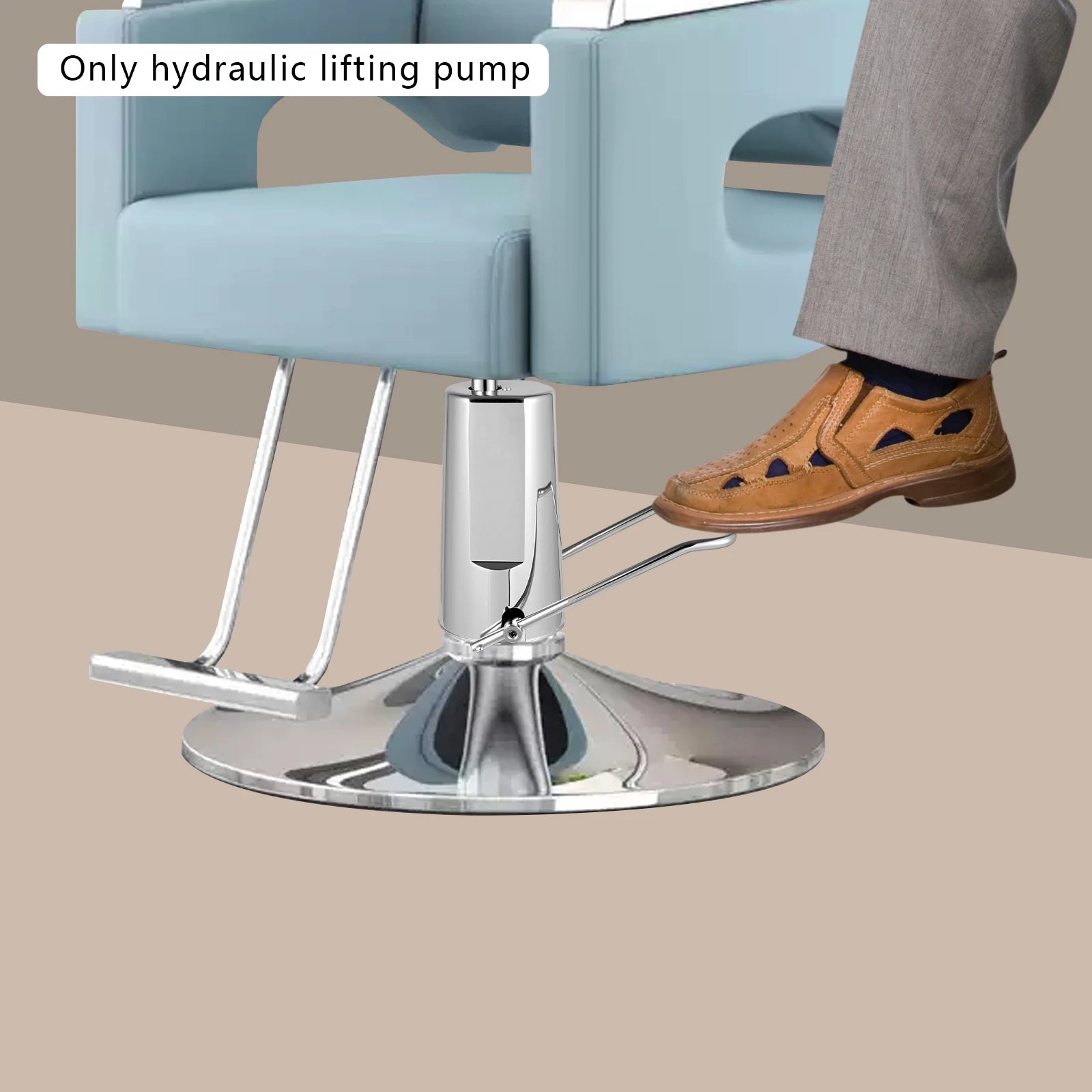

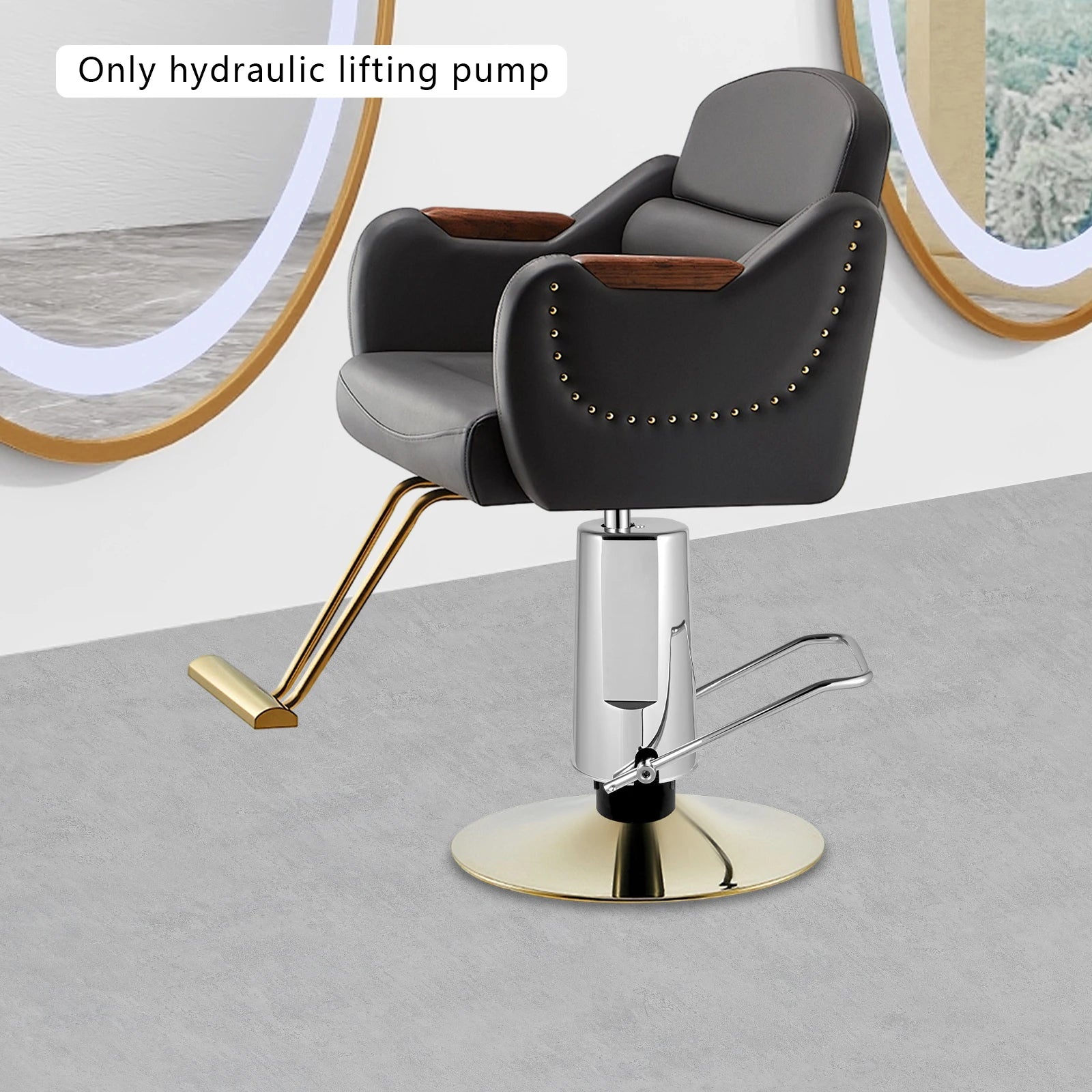

This barber chair hydraulic pump is suitable as a replacement part for most standard styling chairs in bars, restaurants, hairdressers and other places.

Details

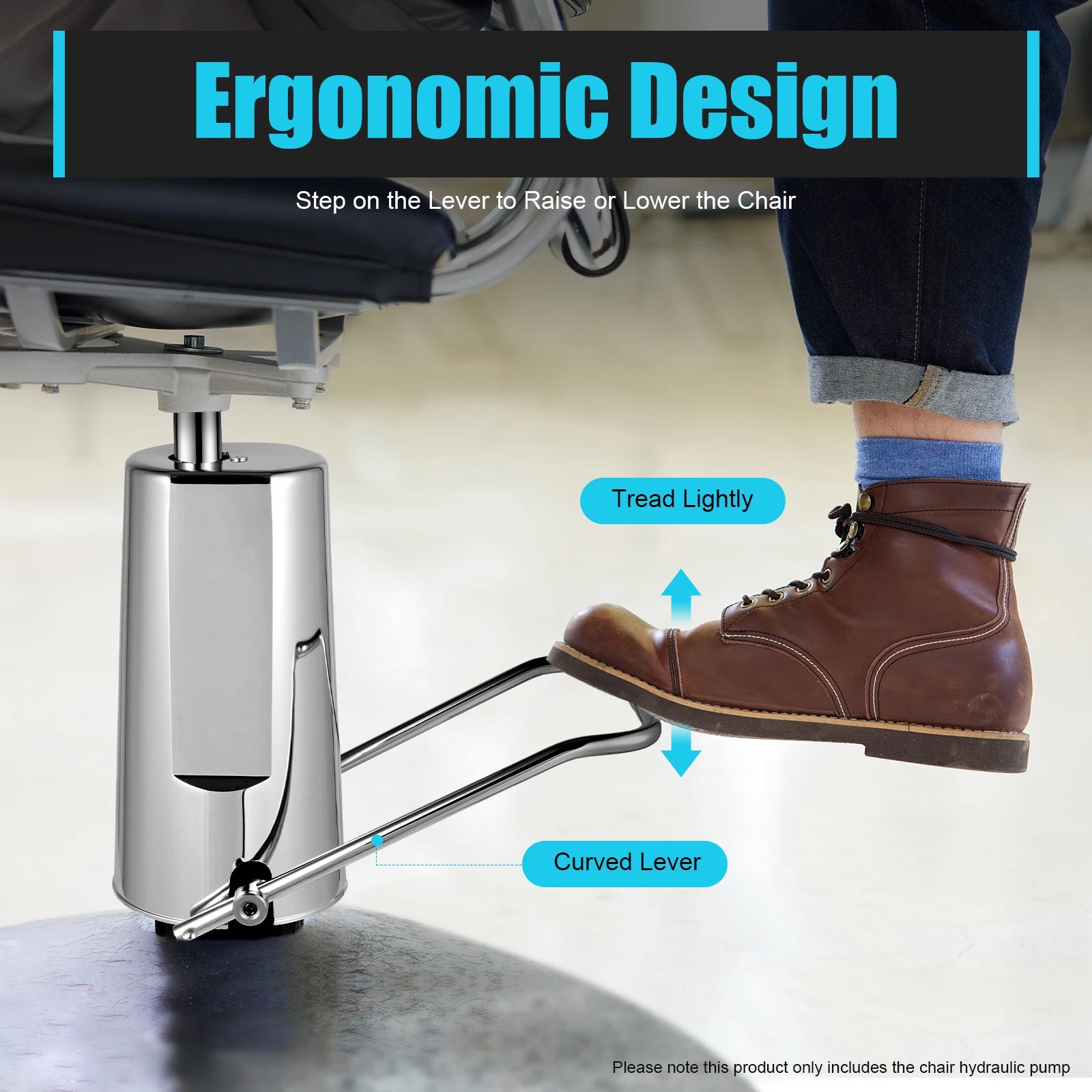

Lever: This item has an ergonomically designed lever that has a suitable position. You can easily adjust the height of the lift pump without bending over.

Strong Housing: The painted housing can make this lift pump not easy to rust, hardness is strong, and you can use a long time.

Description

This barber chair hydraulic pump has an adjustable height range of 11 cm/4.3in, you can easily complete the lift of the chair according to your needs. And it has a strong load-bearing capacity, you do not have to worry that it will easily break down. If you need chair lifting and weight-bearing, then it is very suitable for you!

Package Included

1* Barber Chair Hydraulic Pump

Notes

1.The package does not contain the bottom disc and chair, so if you need it, please prepare it in advance.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
